MSI SENSOR ADAPTER
Expand the measurement functionality with MSI
With our modular smart interfaces (MSI) you expand the functionality of your TRION(3), PU[REC] and NEX[DAQ] inputs. Each MSI is a signal conditioner designed for a dedicated sensor type and gets automatically detected and set up. Extend the measurement capability to charge, LVDT or thermocouple input or to extend the measurement modes to bridge, etc.
HOW DOES MSI WORK?
Each MSI is a signal conditioner designed for a dedicated sensor type. By reading the TEDS chip, the DAQ system gets any necessary information to adjust the amplifier accordingly. Don’t worry – you automatically get the right measuring ranges with the right unit displayed. For traceability, essential data like MSI type and serial number are stored into your data files.
MSIs expand the measurement functionality of
- TRION(3)-MULTI modules,
- NEX[DAQ] and
- PU[REC]

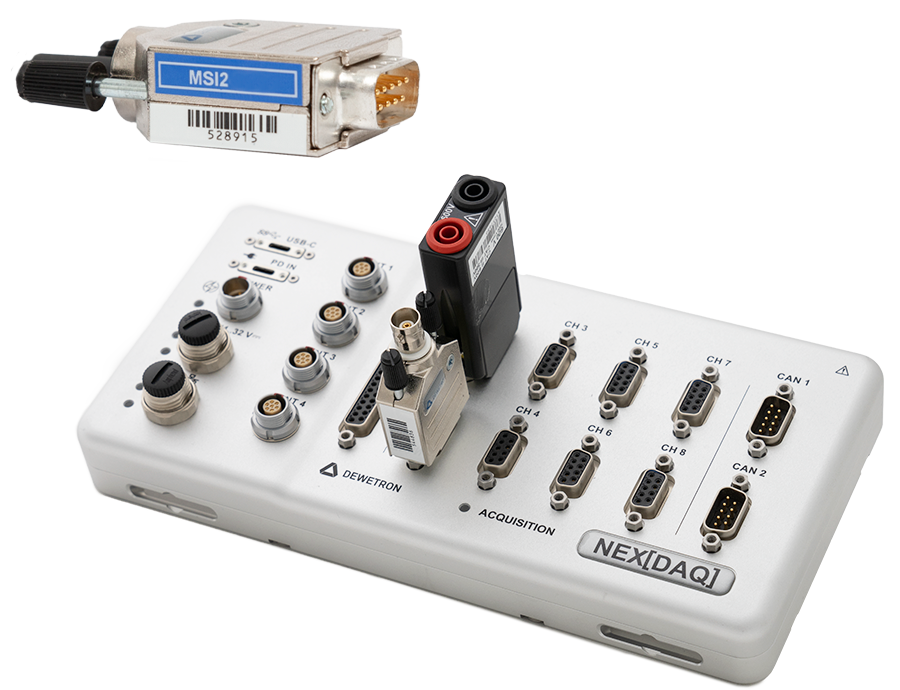

MSI CONNECTOR BOX
The TRION-x-dLV-CB16-D9 is a feature expansion box for TRION-1802-dLV-32 and TRION-1600-dLV-32 modules.
It supports up to 16 D-SUB-9 sockets for analog inputs or the use of our MSIs as well as precision ±5 V excitation voltage with remote sense per channel. The TRION-x-dLV-CB16-D9 also features a CAN and digital I/O interface as well as an auxiliary sensor supply.
It enables the measurement of strain gauge and bridge sensors, IEPE®, LVDT and RVDT, thermocouple, charge, RTD and voltage up to 600 VRMS. All MSIs are compatible with this box.

MSI OVERVIEW
INPUT | SENSOR EXCITATION |
BANDWIDTH (max.) consider limit of used TRION module |
ACCURACY (typ.) |
SENSOR CONNECTION |
||
MSI2-STG | ![]() |
Bridge-type sensors; Full-bridge, half-bridge, quarter bridge 120 Ω and 350 Ω |
5 V and 10 V | 60 kHz | ±0.1 % | Miniature spring terminals |
MSI2-LVDT | ![]() |
LVDT and RVDT sensors, 5- or 6-wire connection |
3 V at 2.5, 5 or 18 kHz |
1 kHz | ±0.1 % | Soldering pads |
MSI-BR-ACC | ![]() |
IEPE® sensors, typ. accelerometer, microphone |
4 mA | 1.4 Hz to 250 kHz | ±0.2 % | BNC |
MSI2-CH-x | ![]() |
Charge type sensors up to 100 000 pC |
n/a | 0.08 Hz to 250 kHz | ±0.5 % | BNC |
MSI2-TH-x | ![]() |
Thermocouple sensors; Standard models for type K, J, T (others on request) |
n/a | DC to 30 kHz | ±1°C | Mini TC socket |
MSI-BR-V-200 | ![]() |
Voltage up to ±200 V | n/a | DC to 100 kHz | ±0.1 % | BNC |
MSI-BR-RTD | ![]() |
RTD sensors; PT100, PT200, PT500, PT1000, PT2000; 2, 3 and 4 wire connection |
1.25 mA | DC to 10 kHz | ±0.1 % | Binder 712 series 5-pin socket |
MSI2-250R-20mA | ![]() |
4 to 20 mA sensors | 5 to 48 V AUX PWR |
DC to 250 kHz | ±1°C | Miniature spring terminals |
MSI2-V-600 | ![]() |
Voltage up to 600 VRMS | n/a | DC to 60 kHz | DC to 1 kHz: ±0.1 % of reading ±100 mV
>5 kHz to 10 kHz: |
Safety banana sockets |
Get more information about the MSI sensor adapters
MSI Sensor Adapters – check out more details
MSI2-STG
The MSI2-STG is a highly dependable conditioner, engineered specifically for the measurement bridge sensors. This MSI can be set via jumpers to support full, half or quarter bridge sensors with an excitation of either 5 V or 10 V. In the case of quarter bridge sensors, the completion resistance can be set to 120 Ω or 350 Ω. Measurements up to 50 m between are possible due to the build in amplifier of the MSI.
KEY FEATURES:
- Full-, half-, and quarter bridges (via jumper)
- Excitation voltage: 5 V or 10 V (via jumper)
- Input range: 20 mV/V at 5 V excitation
- Bandwidth: 60 kHz (-3 db)
- Accuracy: 0.02% of reading ± 5µV/V
- Sensor connection: Push-in springs

MSI2-LVDT
The MSI2-LVDT is a highly dependable conditioner, engineered specifically for the measurement of displacements via LVDT sensors in 5- or 6-wire configuration. The MSI provides the required sine wave sensor excitation in three modes depending on jumper configuration of 2.5 kHz, 5 kHz and 18 kHz. The sensitivity of the MSI can be tuned by a gain potentiometer, which relates the stroke end length to the output voltage. Further scaling, e.g. two point, can be done in the OXYGEN software.
KEY FEATURES:
- Output ranges: adjustable by potentiometer 280 mV/V to 1666 mV/V (±5V)
- Excitation mode: 3 VRMS @ 2.5 kHz, 5 kHz or 18 kHz (via jumper: High, Medium, Low)
- Bandwidth: 1 kHz
- Sensor connection: soldering

MSI2-BR-ACC
The MSI2-BR-ACC is a precise and reliable conditioner designed for Integrated Electronics Piezo-Electric (IEPE®) accelerometers. Engineered for high performance, this modular smart interface delivers precise measurements with an accuracy of 0.2 % within the frequency range of 30 Hz to 30 kHz.
KEY FEATURES:
- Input range: ±10 V
- Bandwidth: 4 Hz to 250 kHz
- Accuracy: 2 % within 30 Hz to 30 kHz
- Sensor excitation: 4 mA ±10 %
- Sensor connection: BNC

MSI2-CH-x
The MSI2-CH-x is a reliable and precise conditioner designed for measuring electrostatic charges. Depending on the model selected, the modular smart interface offers an input range of ±5000 pC (MSI2-CH-5) or ±100,000 pC (MSI2-CH-100) and is therefore suitable for various applications.
KEY FEATURES:
- Input range: ±5000 pC or ±100 000 pC
- Bandwidth: 0.08 Hz to 250 kHz
- Accuracy: 0.5 % within 3 Hz to 30 kHz
- Sensor connection: BNC

MSI2-250R-20mA
The MSI2-250R-20mA is a highly dependable conditioner, engineered specifically for the measurement of currents with loop powered sensors, which require a voltage excitation (AUX power). Due to the connection via push-in springs, no soldering is required to connect the current sensor to the MSI.
KEY FEATURES:
- Excitation voltage for loop powered sensors
- Current signal of 4 to 20 mA
- Input range: ±25 mA
- Accuracy: 0.05% of reading ±4µA
- Sensor connection: push-in spring
- Bandwidth: DC to 250 kHz

MSI2-TH-x
The MSI2-TH-x from DEWETRON, a versatile and robust conditioner designed for precise thermocouple measurements. This modular smart interface extends the capabilities of DEWETRON DAQs, making them compatible with various thermocouple types and ensuring reliable data in challenging environments.
KEY FEATURES:
- Thermocouple compatibility: Supports type K, J, and T thermocouples by default. Non-standard types such as C, E, R, and S can be integrated upon request.
- Bandwidth: DC to 30 kHz
- Accuracy incl. CJC error: from 0.5 °C to 3 °C (dependent on thermocouple type and measurement range)
- Sensor connection: 1 m cable with standard miniature thermocouple connector according to TC type
- Extension cable length: up to 50 meters

MSI2-BR-RTD
The MSI2-BR-RTD is a high-precision resistance temperature detector (RTD) conditioner designed to support a wide range of RTD sensors, including Pt100, Pt200, Pt500, Pt1000, and Pt2000. With its 2-, 3- or 4-wire connection types, this modular smart interface ensures accurate and reliable temperature readings across a broad spectrum.
KEY FEATURES:
- Broad temperature range: capable of measuring temperatures from -200 °C to 850 °C
- Accuracy: from 0.04 % of reading ±0.10 °C to 0.05 % of reading ±0.65 °C
- Sensor connection: 5-pin binder connector series 712
- RTD wire configuration types: 2-wire, 3-wire, or 4-wire
- Bandwidth: DC to 10 kHz

MSI2-BR-V-200
The MSI2-BR-V-200 is a robust signal conditioning adapter designed for high-performance voltage applications. Engineered for versatility and accuracy, this modular smart interface is ideal for a wide range of applications requiring reliable low-voltage measurements with a rated input voltage to earth according to IEC/EN 61010-2-30 of 33 VRMS, 70 VDC, 46.7 VPEAK.
KEY FEATURES:
- Input voltage: up to 33 VRMS, 70 VDC, 46.7 VPEAK
- Wide measurement range: selectable ranges of ±200 V, ±100 V, ±40 V, and ±20 V
- Bandwidth: DC to 100 kHz
- Input type: differential input to minimize noise and enhance measurement accuracy
- Sensor connection: BNC connector
- DC accuracy: ±0.05 % of reading ±20 mV

MSI2-V-600
The MSI2-V-600 is a signal conditioning adapter designed for precise high-voltage measurements. The rated input voltage to earth according to IEC/EN 61010-2-30 is 300 V CAT III or 600 V CAT II. This modular smart interface ensures accurate and reliable data and uses differential input to reduce noise and enhance measurement precision.
KEY FEATURES:
- Input voltage: 300 V CAT III / 600 V CAT II
- Wide measurement range: selectable ranges of ±1000 V, ±500 V, ±200 V, and ±100 V
- Bandwidth: DC to 60 kHz
- Input type: differential input to reduce noise and enhance measurement accuracy
- Accuracy: between ±0.1 % to ±1 % of reading + 100 mV (depending on the sample rate)
- Sensor connection: 4 mm safety banana sockets
