TRION(3) MODULES
User-exchangeable analog, digital and power modules
Choose from our various TRION(3) signal conditioning modules to measure analog signals from any sensor absolute synchronously. Enjoy maximum flexibility with these user-exchangeable modules featuring A/D conversion on each channel and anti-aliasing filters.
TRION3 and TRION
User-exchangeable, multi-channel modules for analog and digital conversion on each channel.
ANALOG MODULES
Experience full flexibility with our TRION(3) analog amplifiers. They vary in the number of channel count, sample rates per channel, resolution, isolation and connector type. Whether you want to measure high or low voltage, you will find the right TRION(3) module for you.
![]() |
CHANNEL | SAMPLE RATE/CH. | RESOLUTION | ISOLATION | CONNECTOR TYPES | ||
TRION3-1850-MULTI ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 4 or 8 | 5 MS/s | 24-bit >2 MS/s: 18-bit |
ISO | 4 D-SUB or 8 LEMO 0B |
TRION3-1820-MULTI![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 4 or 8 | 2 MS/s | 24-bit >2 MS/s: 18-bit |
ISO | 4 D-SUB or 8 LEMO 0B |
TRION-1820-MULTI![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 4 | 2 MS/s | 24-bit >2 MS/s: 18-bit |
ISO | 4 D-SUB |
TRION-2402-MULTI![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 4 or 8 | 200 kS/s | 24-bit | ISO | 4 D-SUB or 8 LEMO 0B |
TRION-1620-ACC![]() |
![]() ![]() ![]() ![]() |
Datasheet | 6 | 2 MS/s | 24-bit >1 MS/s: 16-bit |
ISO | 6 BNC or LEMO 1B |
TRION-1620-LV![]() |
![]() ![]() |
Datasheet | 6 | 2 MS/s | 24-bit >1 MS/s: 16-bit |
ISO | 6 BNC or LEMO 1B |
TRION3-1810-HV![]() |
![]() ![]() |
Datasheet | 4 to 8 | 1 MS/s | 24-bit | ISO | Safety banana, CAT III 1000 V |
TRION-1810-HV![]() |
![]() ![]() |
Datasheet | 4 to 8 | 1 MS/s | 24-bit | ISO | Safety banana, CAT III 1000 V |
TRION3-1810-SUB-8![]() |
![]() ![]() |
Datasheet | 8 | 1 MS/s | 20-bit | ISO | Safety banana |
TRION3-1810M-SUB-8![]() |
![]() ![]() |
Datasheet | 8 | 10 MS/s | 20-bit | ISO | Safety banana |
TRION-1603-LV![]() |
![]() ![]() |
Datasheet | 6 | 250 kS/s | 16-bit | ISO | 6 BNC or LEMO 1B |

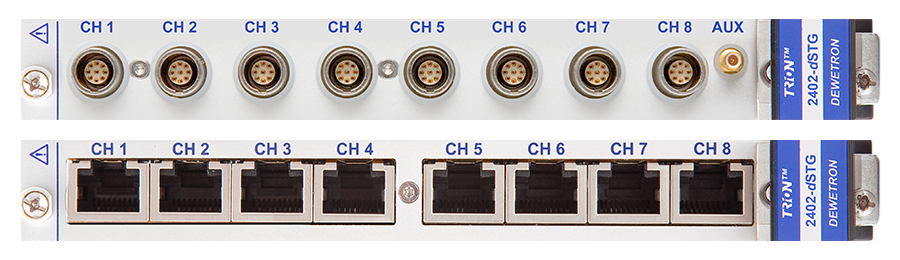

TRION-2402-dSTG![]() |
![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 6 or 8 | 200 kS/s | 24-bit | – | 8 LEMO 0B or 8 RJ45 |
TRION-2402-dACC![]() |
![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | 6 or 8 | 200 kS/s | 24-bit | – | 6 BNC or 8 SMB |
TRION3-1802-dLV![]() |
![]() ![]() ![]() ![]() ![]() |
Datasheet | 16 or 32 | 200 kS/s 100 kS/s |
18-bit 24-bit |
– | D-SUB |
TRION3-1600-dLV![]() |
![]() ![]() ![]() ![]() ![]() |
Datasheet | 16 or 32 | 20 kS/s | 16-bit | – | D-SUB |
Compatibility: The high-speed DEWE3 systems support both, TRION3 and TRION modules. The DEWE2 systems only support TRION modules.
Here you find the overview of our DAQ systems
DIGITAL MODULES
Discover our TRION(3) digital amplifiers. Find your ideal TRION(3) module for DIO, counter, timing, CAN or other bus signals such as ARINC429 or MILSTD-1553.
![]() |
CHANNELS | SAMPLE RATE/CH. | RESOLUTION | ISOLATION | FEATURES | ||
TRION-CNT![]() |
![]() ![]() |
Datasheet | 6 | 2 MS/s | 80 MHz | ISO | 6 channel advanced counter |
TRION-DI-48![]() |
![]() |
Datasheet | 48 | 2 MS/s | 500 nsec | ISO | 48 high-speed digital IN |
TRION-BASE![]() |
![]() ![]() ![]() |
Datasheet | – | 2 MS/s | 80 MHz | – | Basic I/O card with simple IRIG sync and 2 counter |

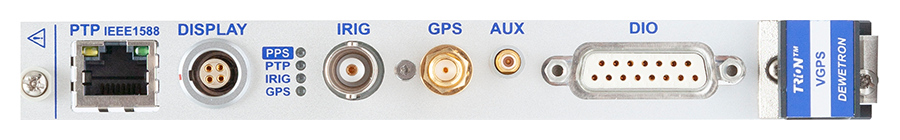

TRION-VGPS-V3![]() |
![]() ![]() ![]() ![]() ![]() |
Datasheet | – | 2 MS/s | 0.01 km/h <10 cm |
– | 100 Hz GNSS receiver for automotive applications |
TRION-TIMING-V3![]() |
![]() ![]() ![]() ![]() ![]() |
Datasheet | – | 2 MS/s | 12.5 nsec | – | Applies precision absolute time to measured data |

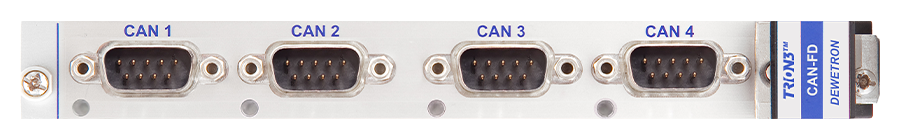

TRION-CAN![]() |
![]() |
Datasheet | 4 | 1 MBit | – | ISO | D-SUB |
TRION-ARINC![]() |
![]() |
Datasheet | 4 or 16 | – | – | – | Decoding of ARINC429 signals, export of decoded signals |
TRION-MIL1553![]() |
![]() |
Datasheet | 1 or 4 | – | – | – | Decoding of MIL-STD-1553 signals, export of decoded signals |
TRION-EtherCAT-1-SLAVE![]() |
![]() |
Datasheet | 100 | 500 S/s | – | – | Measurement data output |
Compatibility: The high-speed DEWE3 systems support both, TRION3 and TRION modules. The DEWE2 systems only support TRION modules.
Here you find the overview of our DAQ systems
POWER MODULES
Discover TRION(3) series high-speed power modules, ideal for precise 4-phase power analysis. Benefit from user-exchangeable modules and additional sub-modules for unmatched flexibility in meeting your power analysis requirements.
CHANNELS | SAMPLE RATE/CH. | RESOLUTION | ISOLATION | CONNECTOR TYPES | |||
TRION3-1810M-POWER
|
![]() ![]() |
Datasheet | 8 (4 U / 4 I) | 10 MS/s | 18-bit | ISO | Fixed: 4x Safety banana, CAT III 1000 V – Exchangeable: 4x Sub-Modules |
TRION3-1820-POWER
|
![]() ![]() |
Datasheet | 8 (4 U / 4 I) | 2 MS/s | 18-bit | ISO | Fixed: 4x Safety banana, CAT III 1000 V – Exchangeable: 4x Sub-Modules |
TRION-1820-POWER
|
![]() ![]() |
Datasheet | 8 (4 U / 4 I) | 2 MS/s | 24-bit | ISO | Fixed: 4x Safety banana, CAT III 1000 V – Exchangeable: 4x Sub-Modules |
TRION-1810-HV
|
![]() |
Datasheet | 8 (4 U / 4 I) | 1 MS/s | 24-bit | ISO | Fixed: 4x Safety banana, CAT III 1000 V – Exchangeable: 4x Sub-Modules |
TRION3-1810-SUB-8
|
![]() ![]() |
Datasheet | 8 | 1 MS/s | 18-bit | ISO | Fixed: 0 – Exchangeable: 8x Sub-Modules |
Compatibility: The high-speed DEWE3 systems support both, TRION3 and TRION modules. The DEWE2 systems only support TRION modules.
Here you find the overview of our DAQ systems.
ANALOG OUTPUT MODULES
Experience the versatility of TRION3-x-AOUT modules, providing analog signal output for diverse applications like signal conditioning, waveform generation, and data playback. Highlighting true 3-way isolation, 600 kHz bandwidth, and industry-leading dynamics from 32-bit D/A converters.
CHANNELS | SAMPLE RATE/CH. | RESOLUTION | ISOLATION | CONNECTOR TYPES | |||
TRION3-1850-MULTI-AOUT-8
|
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | IN: 8 OUT: 8 |
IN: 5 MS/s OUT: 2.5 MS/s |
IN: 24-bit OUT: 32-bit |
IN: ISO OUT: ISO |
IN: LEMO 0B OUT: D-SUB, BNC |
TRION3-1820-MULTI-AOUT-8
|
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Datasheet | IN: 8 OUT: 8 |
IN: 2 MS/s OUT: 2.5 MS/s |
IN: 24-bit OUT: 32-bit |
IN: ISO OUT: ISO |
IN: LEMO 0B OUT: D-SUB, BNC |
TRION3-AOUT-8
|
![]() |
Datasheet | OUT: 8 | 2.5 MS/s | Up to 32-bit | ISO | OUT: D-SUB, BNC |
Compatibility: The high-speed DEWE3 systems support both, TRION3 and TRION modules. The DEWE2 systems only support TRION modules.
Here you find the overview of our DAQ systems
SUB-MODULES
With our sub-modules we offer a unique modularity. Equip your TRION(3) module with different sub-modules and benefit from high-speed data acquisition, direct current or voltage measurements.
SUB-MODULES FOR CURRENT INPUT (directly & sensors)
RANGE | SAFETY | BANDWIDTH | CONNECTOR | EXCHANGEABLE BY USER | |||
Current transducer module TRION-SUB-CT |
![]() |
Datasheet | 1 ARMS (±2 APEAK) 0.5 ARMS (±1 APEAK) 0.25 ARMS (±0.5 APEAK) 0.1 ARMS (±0.2 APEAK) |
Not isolated. Depending on connected current clamp |
5 MHz | D-SUB-9 socket | Yes |
20 A module TRION-POWER-SUB-CUR-20A |
![]() |
Datasheet | 20 ARMS (±40 APEAK) |
CAT II 600 V, unfused | 300 kHz | Safety banana (male) | Yes |
2 A module TRION-POWER-SUB-CUR-2A |
![]() |
Datasheet | 2 ARMS (±4 APEAK) |
CAT II 600 V, unfused | 300 kHz | Safety banana (male) | Yes |
1 A module TRION-POWER-SUB-CUR-1A |
![]() |
Datasheet | 1 ARMS (±2 APEAK) |
CAT II 600 V, unfused | 300 kHz | Safety banana (male) | Yes |
0.2 A module TRION-POWER-SUB-CUR-02A |
![]() |
Datasheet | 0.2 ARMS (±0.4 APEAK) |
CAT II 600 V, unfused | 300 kHz | Safety banana (male) | Yes |
SUB-MODULES FOR VOLTAGE INPUT
RANGE | SAFETY | BANDWIDTH | CONNECTOR | EXCHANGEABLE BY USER | |||
1 V module TRION-POWER-SUB-dLV-1V |
![]() |
Datasheet | 1 VRMS (±2 VPEAK) |
Not isolated. Depending on connected current clamp |
5 MHz | D-SUB-9 socket | Yes |
5 V module TRION-POWER-SUB-dLV-5V |
![]() |
Datasheet | 5 VRMS (±10 VPEAK) |
Not isolated. Depending on connected current clamp |
5 MHz | D-SUB-9 socket | Yes |
Clamp input module TRION-POWER-SUB-dLV-1 |
![]() |
Datasheet | 5 VRMS (±10 VPEAK) |
Not isolated. Depending on connected current clamp |
150 kHz | D-SUB-9 socket | Yes |
600 V module TRION-SUB-600V |
![]() |
Datasheet | 600 VRMS (±1500 VPEAK) |
CAT II 600 V, isolated | 300 kHz | Safety banana | Yes |
5 V module TRION-SUB-5V |
![]() |
Datasheet | 5 VRMS (±10 VPEAK) |
CAT II 600 V, isolated | 300 kHz | Safety banana | Yes |
Seamless auto-range module TRION-SUB-XV |
![]() |
Datasheet | 600 VRMS (±850 VPEAK) 60 VRMS (±100 VPEAK) 6 VRMS (±10 VPEAK) 0.6 VRMS (±1 VPEAK) |
CAT II 600 V, isolated | 300 kHz | Safety banana | Yes |
FIXED HIGH-VOLTAGE INPUTS
4 channels on each power module are fixed high-voltage inputs with ±2000 VPEAK.
The other 4 channels are free for different user-exchangeable sub-modules.
The only exception is the TRION3-1810-SUB-8 module:
With its 8 user-exchangeable sub-modules, it is the most flexible TRION power module.
RANGE | SAFETY | BANDWIDTH | CONNECTOR | ||
Voltage Input U1, U2, U3, U4 |
![]() |
1000 V (±2000 VPEAK) |
CAT IV 600 V / CAT III 1000 V |
5 MHz | Safety banana |
