Mainframes

Rack-Mount Mainframes for TRION/TRION3 modules

  • Rack-mount or benchtop data acquisition mainframe
  • Silent cooling, easy to maintain fan slot
  • Gapless storage of raw data up to 1 GB/s

19” mounting kit available

DEWE3-RM4 DEWE3-RM8 DEWE3-RM12 DEWE3-RM16
Slots for TRION / TRION3 modules 4 TRION™ / TRION3™ 8 TRION™ / TRION3™ 12 TRION™ / TRION3™ 16 TRION™ / TRION3™
Highspeed channel expansion Add TRIONet or OXYGEN-NET
Lowspeed channel expansion 100 Hz CPAD3 via TRION-CAN
Quasi-static channel expansion EPAD2 or CPAD2 via TRION-CAN
Data storage 1 TB highspeed PCIe Solid State Disk dedicated for data storage (removable)
Optional data storage (SSD-PCIe-1T-2T), Upgrade from 1 TB to 2 TB industrial grade, PCIe attached Solid State Disk
Gapless storing rate Typ. 1 GB/s
POWER SUPPLY
Input voltage (max.) 90 to 264 VAC
DIMENSIONS
Dimensions (W x D x H) without handle/feet 442 x 435 x 222 mm (5 u) (17.4 x 17.1 x 8.7 in.)
Weight without modules Typ. 15.8 kg (34.8 lb.)

Rack-mount Mixed Signal

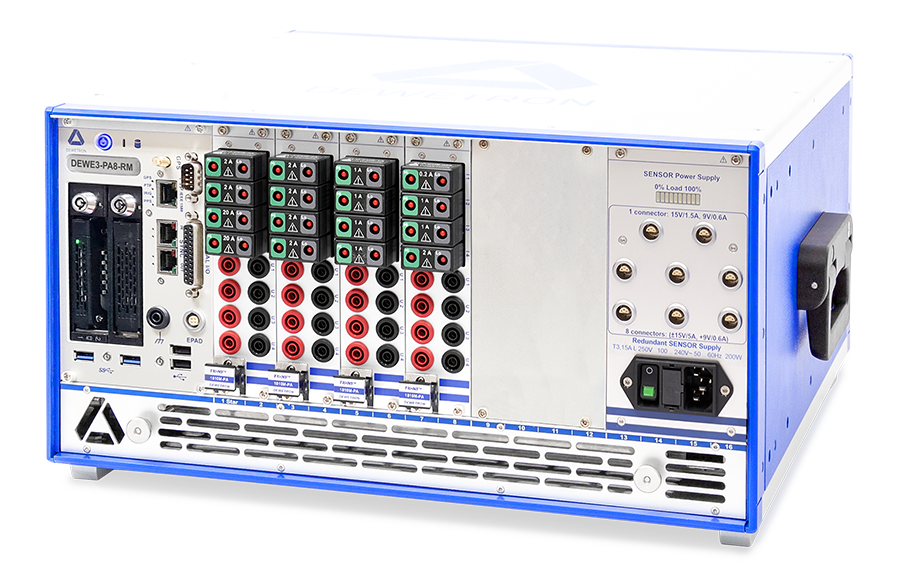

Power Analyzer DEWE3-PA8-RM

  • 8 slot for TRION/TRION3 series modules
  • Up to 16 power channels
  • Integrated redundant 8-fold supply for current transducers: Enables the engineer to relinquish an additional supply box and connect the transducer directly to the power analyzer. Most of the common sensors with ±15 V or +9 V are compatible, also demanding ones (like zero-flux transducers) can be powered thanks to the superior power supply.
  • 1 TB SSD for data storage
  • Ports: 8x USB, 2x LAN, 2x display port, LEMO socket for EPAD, TRION-SYNC-BUS 115/230 VAC 50/60 Hz power supply

DEWE3-PA8-RM



Mainframe Systems with TRION/TRION3 Modules

  • Highest channel density
  • User exchangeable TRION/TRION3 modules
    for analog, digital, counter, CAN inputs
  • Selectable resolution up to 24-bit
Name Class Analog input (max.) Isolated or Differential Slots TRION™ / TRION3™ AC DC Battery Weight & Size
DEWE3-M4 portable 32 4 TRION™ /
TRION3™
opt. typ. 3.9 kg (8.6 lb.) 318 x 253 x 108 mm (12.5 x 10 x 4.3 in.)
DEWE2-M4 portable 32 4 TRION™ / - opt. typ. 3.9 kg (8.6 lb.) 318 x 253 x 108 mm (12.5 x 10 x 4.3 in.)
DEWE2-M7 laboratory, rack-mount 56 7 TRION™ / - - - typ. 13 kg (28.6 lb.) 441 x 230 x 177 mm (4u) (17.42 x 9.1 x 7 in.) without feet
DEWE2-M7s portable 56 7 TRION™ / - opt. typ. 4.9 kg (10.9 lb.) 258 x 230 x 177 mm (4u) (10.2 x 9.1 x 7 in.) without feet
DEWE2-M13s portable, rack-mount 104 13 TRION™ / - opt. typ. 8.3 kg (18.3 lb.) 441 x 230 x 177 mm (4u) (17.42 x 9.1 x 7 in.) without feet
DEWE2-M13 laboratory, rack-mount 104 13 TRION™ / - - - typ. 13 kg (28.6 lb.) 441 x 427 x 177 mm (4u) (17.42 x 9.1 x 7 in.) without feet
DEWE2-M18 laboratory, rack-mount 144 18 TRION™ / - - - typ. 13 kg (28.6 lb.) 441 x 427 x 177 mm (4u) (17.4 x 16.8 x 7 in.) without feet
