OXYGEN SDK: Open development platform

PLUGIN FEATURES

OXYGEN SDK currently offers the following features:

Read and write data from/to numeric channels
Create channels
Create config items for setup save/load and user config
- Numeric, text, channel list
Get access to full channel list (read only)
Get time base and start time for sample placing
Log into OXYGEN logfile
Custom export plugins
Integration of video sources
Offline use
A wizard is available to easily setup the MS Visual Studio environment

PLUGIN FUNCTIONALITIES

OXYGEN SDK offers the following functionalities:

Custom QML-GUI for Add Channel dialog for easy user setup
Custom QML-GUI for data export and special options
User configuration elements
Text and number inputs for all kinds of configuration
Combo boxes (drop-down & custom input)
File picker for selecting files
Read data from any OXYGEN channel
Create new OXYGEN channels and write data into

SUPPORTED OPERATING SYSTEMS

Following operating systems are supported by OXYGEN:

Microsoft Windows
Ubuntu LTS Linux (Focal Fossa)
Red Hat Enterprise Linux (RHEL)

Compatible (and free) alternatives to RHEL:

Rocky Linux
Alm Linux
Oracle Linux

Python Support for OXYGEN SDK

Accelerate plugin development with Python support for OXYGEN SDK using our dedicated python library. Compatible with Python 3.12–3.15, it enables fast, modern, and flexible creation of custom extensions for OXYGEN.

The library supports:

Registration of new channel types in the Add Channel dialog
Output channels with custom properties
Customization of Add Channel and Channel Details pages using QML
Translation support for property names and UI texts

For maximum reliability, every Python-based ODK plugin runs in its own dedicated process, ensuring the stability of OXYGEN even during development. Plugins can either be started automatically by OXYGEN or launched directly in a debugger for simplified development, testing, and troubleshooting.

FIND EXAMPLE CODES AND DOCUMENTATION ON GITHUB

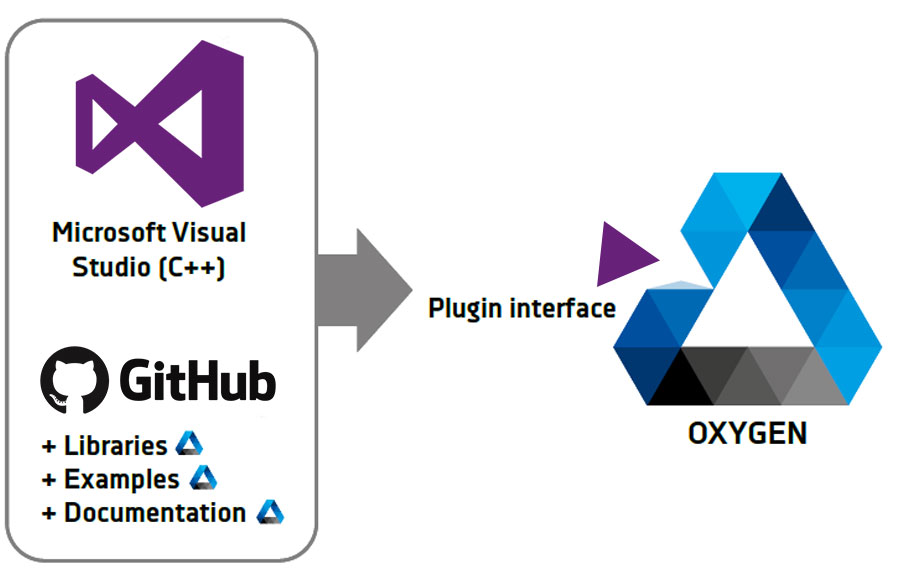

If OXYGEN does not provide a certain function, create it on your own. The SDK includes the framework, manual and examples to quickly get started using the Microsoft Visual Studio C++ toolchain.

Get started and visit DEWETRON @ GitHUB

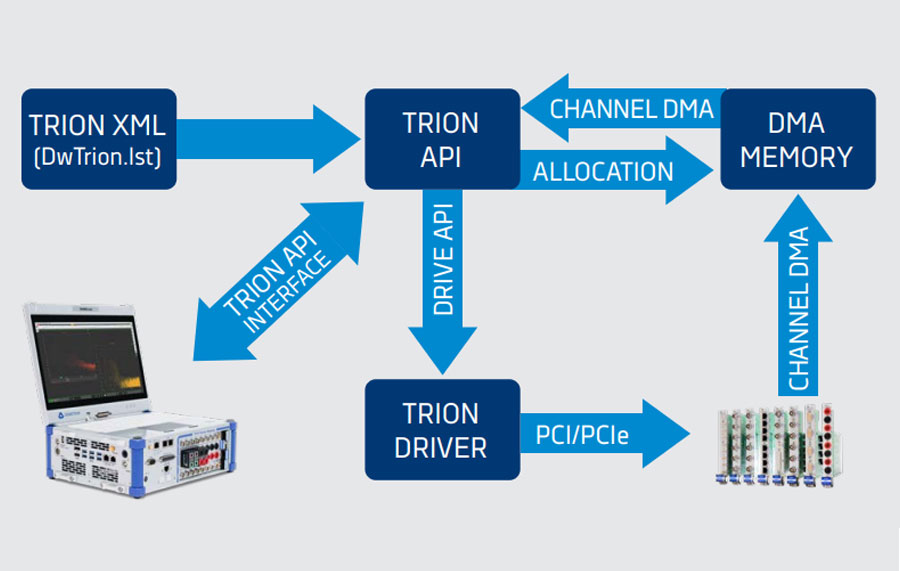

TRION SDK

The TRION SDK helps you, to build your own measurement application based on the DEWE3 and TRION/TRION3 hardware platforms. It also supports the use of TRIONet3 and NEX[DAQ].

The API can be used by any programming language that is able to load a .dll and .call C style function. Examples are provided for C, C++, C# and Python.
