OXYGEN-NET
Virtual measurement network
Combine several DEWETRON data acquisition systems to one virtual measurement device with this software option. The setup and control are easily done for all systems from the main device. This works with absolute time synchronization via: PTP (IEEE 1588), GPS, IRIG, PPS.
OXYGEN-NET Key Strengths

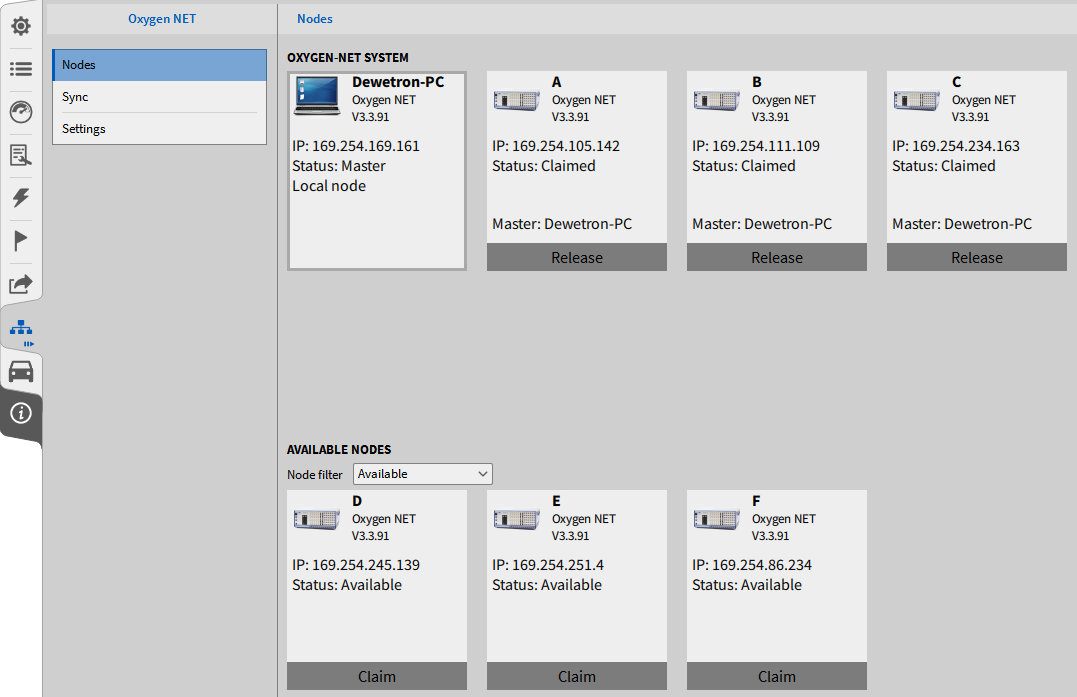

Remote system configuration
All measurement nodes can be remotely configured from a central master unit, that also handles synchronized data collection for seamless operation.
Continuous data transfer
Data from all channels and measurement nodes can be continuously transferred to the master client, limited only by Ethernet bandwidth.
One global
data file
The master unit can collect and store data from all channels into a single synchronized data file. Data storage rates up to 1 GB/s can be achieved
Redundant data storage
For data security, measurement nodes store data locally during recording and merge it post-measurement if network issues occur, ensuring no data loss.
Synchronization options
Select the ideal synchronization solution for your application. Choose from TRION-SYNC-BUS, PTP & IRIG or GPS synchronization.
High channel count systems
OXYGEN-NET is ideal for enabling systems with over 1000 channels by and supports virtually unlimited channels – only limited by network bandwidth.
Distributed CPU load via local calculations
Doing computations and signal analysis locally on the measurement notes, distributes the CPU load and RAM usage and reduces the strain on the master system.
High-channel-count setups
OXYGEN-NET is a software option for DEWETRON’s measurement software OXYGEN. It is designed to seamlessly integrate multiple DEWE2/3 data acquisition chassis into a unified system. By connecting devices via Ethernet, OXYGEN-NET enables the creation of locally distributed and high-channel-count setups. A variety of synchronization options ensure a common, precise time base for all connected chassis.

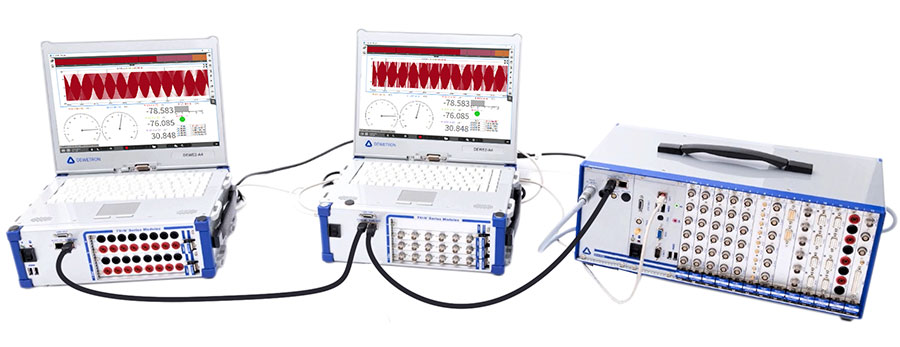

ONE virtual measurement system- even at different locations
Many applications require more than one measurement device, sometimes even at different locations. OXYGEN-NET makes it possible, to sum up all devices to one virtual measurement device. You only need a reliable network connection, and you can simply claim all available nodes and operate it from the main device.
OXYGEN-NET is also the right choice for high channel count systems requiring several hundred high-speed input channels, networked data acquisition systems and redundant data storage.
And the best thing is that every measurement works with absolute time synchronization as well as with TRION-SYNC-BUS.
Multi-Master Mode
OXYGEN-NET supports multiple master clients within a single system, allowing measurement nodes to be configured from various locations. Additionally, each master client can record data independently with different recording conditions.
Redundant Master Mode
Measurement nodes can distribute data to multiple master clients simultaneously across a single or a second redundant network. In case, one master client or network fails, the remaining clients continue recording, ensuring no data loss.
OXYGEN-NET APPLICATIONS
- Wind tunnel testing
- Distributed Measurements in wind parks
- Propulsion engine testing
- Power Analysis on complex powertrains
- Shaker testing
- Structural dynamic testing
- Seismic testing
